Vacuum Pump

• Application
• Other, Pharmaceutical, Chemical, Medical, Food Processing, R&D Labs

• Caliber
• 1 inch

• Capacity
• 200 Litre Per Minute

• Control System
• Manual Start/Stop

• Discharge Pressure
• Atmospheric

• Features
• Oil-free operation, Low maintenance, Lightweight, Continuous duty

• Flow Rate
• 200 LPM (Litres Per Minute)

• Frequency
• 50 Hz / 60 Hz

• Fuel Tank Capacity
• Not Applicable (Electric Driven)

• Fuel Type
• Other, Electric

• Head Size
• Standard Compact

• Inlet/Outlet
• G1 inch / G1 inch

• Material
• Aluminium Alloy Housing

• Max Suction
• 50 mbar abs (approx)

• Mounting Type
• Base-mounted

• Noise Level
• <60 dB(A)

• Power
• Other, 0.75 kW (1 HP)

• Pressure
• Other, -0.095 MPa (Max Vacuum)

• Priming
• Self-Priming

• Pump Type
• Other, Dry Rotary Vane Vacuum Pump

• Seals Type
• Oil-Free Mechanical Seals

• Speed
• 1450 RPM

• Standard
• ISO 9001 Certified

• Structure
• Other, Single-Stage Dry Pump

• Suction Type
• Dry Type, Oil-Free

• Theory
• Other, Rotary Vane Dry Vacuum

• Usage
• Other, Industrial Laboratory, General Vacuum Applications

• Voltage
• 220V / 380V

• Working Temperature
• 5C to 60C

• Application
• Other, Air Conditioning & Refrigeration Equipment Service

• Caliber
• 1/4 x 3/8

• Capacity
• 12 CFM

• Control System
• Manual

• Discharge Pressure
• Low Pressure

• Features
• High Efficiency, Low Noise, Easy Maintenance, Includes Oil Sight Glass

• Flow Rate
• 12 CFM (Cubic Feet per Minute)

• Frequency
• 50 Hz

• Fuel Tank Capacity
• Oil Reservoir 380 ml

• Fuel Type
• Other, Electric

• Head Size
• Standard

• Inlet/Outlet
• 1/4 SAE, 3/8 SAE

• Material
• Aluminum Alloy Body

• Max Suction
• 0.3 Pa

• Mounting Type
• Base Mounted

• Noise Level
• 68 dB

• Power
• Other, 1 HP

• Pressure
• Other, Ultimate Vacuum 0.3 Pa

• Priming
• Self Priming

• Pump Type
• Other, Vacuum Pump

• Seals Type
• Mechanical Seal

• Speed
• 1440 RPM

• Standard
• CE Certified

• Structure
• Other, Portable Compact Design

• Suction Type
• Single Stage

• Theory
• Other, Rotary Vane Vacuum Pump

• Usage
• Other, HVAC, Refrigeration System Maintenance

• Voltage
• 220V / 50Hz

• Working Temperature
• -5C to 60C

• Application
• Other, Air Evacuation, Vacuum Forming, Distillation, Coating, Drying

• Caliber
• 25mm / 32mm / 40mm (model dependent)

• Capacity
• 21-144 m3/h

• Control System
• Manual/Automatic (On request)

• Discharge Pressure
• Atmospheric

• Features
• Continuous Duty, Low Vibration, Compact Design, Easy Maintenance

• Flow Rate
• 21 to 144 m3/h (varies by model)

• Frequency
• 50Hz/60Hz

• Fuel Tank Capacity
• Oil Reservoir: 2 to 10 L

• Fuel Type
• Other, Electric

• Head Size
• N/A for vacuum pumps

• Inlet/Outlet
• G1 / G3/4 or customized

• Material
• Cast Iron Body, Aluminum Alloy Vanes

• Max Suction
• 600 mmHg

• Mounting Type
• Base Mounted

• Noise Level
• <70 dB(A)

• Power
• Other, 0.55 kW to 5.5 kW

• Pressure
• Other, Ultimate Vacuum up to 0.1 mbar

• Priming
• Self-priming

• Pump Type
• Other, Oil-Lubricated Rotary Vane

• Seals Type
• Oil Lubricated Seals

• Speed
• 1400 to 2800 RPM

• Standard
• Complies with ISO 9001 standards

• Structure
• Other, Single-Stage or Two-Stage

• Suction Type
• Positive Displacement

• Theory
• Other, Rotary Vane Vacuum Pump

• Usage
• Other, Industrial, Laboratory, Packaging & Printing, Electronics

• Voltage
• 220V/380V, 50Hz/60Hz

• Working Temperature
• 5C to 40C

• Application
• Other, Evacuation, Filtration, Degassing

• Caliber
• 3/4 inch

• Capacity
• 4800 LPH

• Control System
• Manual

• Discharge Pressure
• Normal Atmospheric

• Features
• Continuous Duty, Compact Design, Easy Maintenance

• Flow Rate
• 80 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• 8 m

• Inlet/Outlet
• 3/4 BSP

• Material
• Cast Iron

• Max Suction
• 700 mm Hg

• Mounting Type
• Base Mounted

• Noise Level
• < 70 dB

• Power
• Other, 1 HP

• Pressure
• Other, Atmospheric to 700 mm Hg Vacuum

• Priming
• Self Priming

• Pump Type
• Other, Vacuum Pump

• Seals Type
• Mechanical Seal

• Speed
• 1440 RPM

• Standard
• ISI Approved

• Structure
• Other, Monoblock

• Suction Type
• Single Stage

• Theory
• Other, Rotary Vane Vacuum Pump

• Usage
• Other, Industrial / Laboratory

• Voltage
• 220 V / 50 Hz

• Working Temperature
• -5C to 60C

• Application
• Other, Industrial, Laboratory, Refrigeration

• Caliber
• Standard

• Capacity
• 5 CFM

• Control System
• Manual

• Discharge Pressure
• Atmospheric

• Features
• Portable, Light Weight, Low Vibration, Easy Maintenance

• Flow Rate
• 50 L/min

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Standard

• Inlet/Outlet
• 1/4 SAE

• Material
• Aluminium Alloy & Steel

• Max Suction
• 5 Micron (Ultimate Vacuum)

• Mounting Type
• Base Mounted

• Noise Level
• <60 dB(A)

• Power
• Other, 1/2 HP

• Pressure
• Low Pressure

• Priming
• Self-priming

• Pump Type
• Other, Vacuum Pump

• Seals Type
• Oil Sealed

• Speed
• 1440 RPM

• Standard
• ISO 9001 Certified

• Structure
• Other, Single Stage

• Suction Type
• Direct Drive

• Theory
• Other, Rotary Vane Vacuum Pump

• Usage
• Other, HVAC, Laboratory, Refrigeration Service

• Voltage
• 220V / 50Hz

• Working Temperature
• 5C - 40C

• Application
• Other, Dairy Farm, Milking Parlor

• Caliber
• 25 mm

• Capacity
• 200 liters per minute

• Control System
• Manual/Automatic

• Discharge Pressure
• Normal Atmospheric

• Features
• Low Noise, High Efficiency, Compact Design

• Flow Rate
• 200 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Standard

• Inlet/Outlet
• 25 mm / 25 mm

• Material
• Cast Iron, Aluminum

• Max Suction
• -85 kPa

• Mounting Type
• Base Mounted

• Noise Level
• <65 dB

• Power
• Other, 1 HP (0.75 kW)

• Pressure
• Other, -85 kPa (Vacuum)

• Priming
• Self Priming

• Pump Type
• Other, Vacuum Pump

• Seals Type
• Mechanical Seal

• Speed
• 1440 rpm

• Standard
• ISO 5708

• Structure
• Other, Single/Double Barrel

• Suction Type
• Dry

• Theory
• Other, Rotary Vane Vacuum Pump

• Usage
• Other, Milking Machine

• Voltage
• 220V / 380V

• Working Temperature
• -5C to 60C

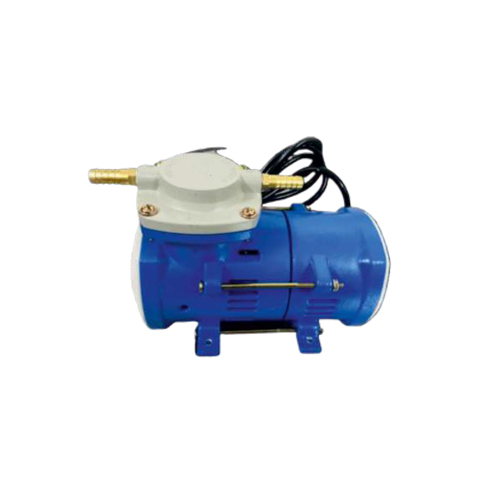

• Application
• Other, Vacuum filtration, Rotary evaporation, Degassing, Solid-phase extraction, Suction filtration

• Caliber
• 8 mm

• Capacity
• 15 L/min

• Control System
• Manual on/off

• Discharge Pressure
• Atmospheric

• Features
• Oil-free, Low maintenance, Corrosion resistant, Portable

• Flow Rate
• 15 L/min

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Inlet/Outlet
• 8 mm hose connector

• Material
• Corrosion-resistant materials (PTFE diaphragm, coated metal housing)

• Max Suction
• 0.08 MPa

• Mounting Type
• Bench-top

• Noise Level
• <60 dB(A)

• Power
• Other, 120 W

• Pressure
• Other, 0.08 MPa

• Priming
• Self-priming

• Pump Type
• Other, Diaphragm

• Seals Type
• EPDM / PTFE

• Speed
• 1400 rpm

• Standard
• CE Certified

• Structure
• Other, Single-head / Single-stage

• Suction Type
• Oil-free

• Theory
• Other, Diaphragm Vacuum Pump

• Usage
• Other, Laboratory, Chemical analysis, Air sampling

• Voltage
• 220V / 50Hz

• Working Temperature
• 5C to 40C

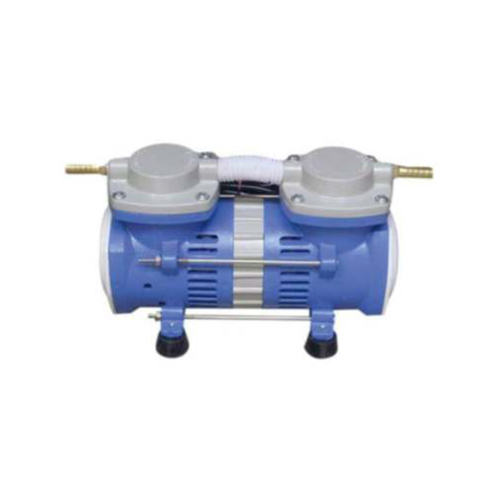

• Application
• Other, Filtration, Vacuum Distillation, Vacuum Drying

• Capacity
• 23 L/min

• Control System
• Manual

• Discharge Pressure
• 200 mbar (abs)

• Features
• Oil-free, Maintenance-free, Chemical-resistant

• Flow Rate
• 23 L/min

• Frequency
• 50 Hz

• Inlet/Outlet
• Hose Nozzle 10mm

• Material
• Corrosion-resistant synthetic

• Max Suction
• 200 mbar

• Mounting Type
• Benchtop

• Noise Level
• < 60 dB(A)

• Power
• Other, 160W

• Pressure
• Other, Vacuum

• Priming
• Self-priming

• Pump Type
• Other, Oil-free Diaphragm Vacuum Pump

• Seals Type
• PTFE Diaphragm

• Standard
• ISO/CE Certified

• Structure
• Diaphragm Pump

• Suction Type
• Single Stage

• Theory
• Other, Diaphragm Pump

• Usage
• Other, Laboratory/Industrial

• Voltage
• 220V/50Hz

• Working Temperature
• 5C to 40C
